3HB lubricating oil pump

1. The pump is of low noise structure, compact appearance design, and easy to disassemble the motor into the pump body.

2. Since the pressure relief valve can reduce the load of motor and pump, it can be used safely.

3. It is applicable to the transfer of liquid and fuel for machine tool equipment and various industrial equipment, lubricating oil supply, oil pressure device, etc.

Custom consultation 18923717049

      characteristic:

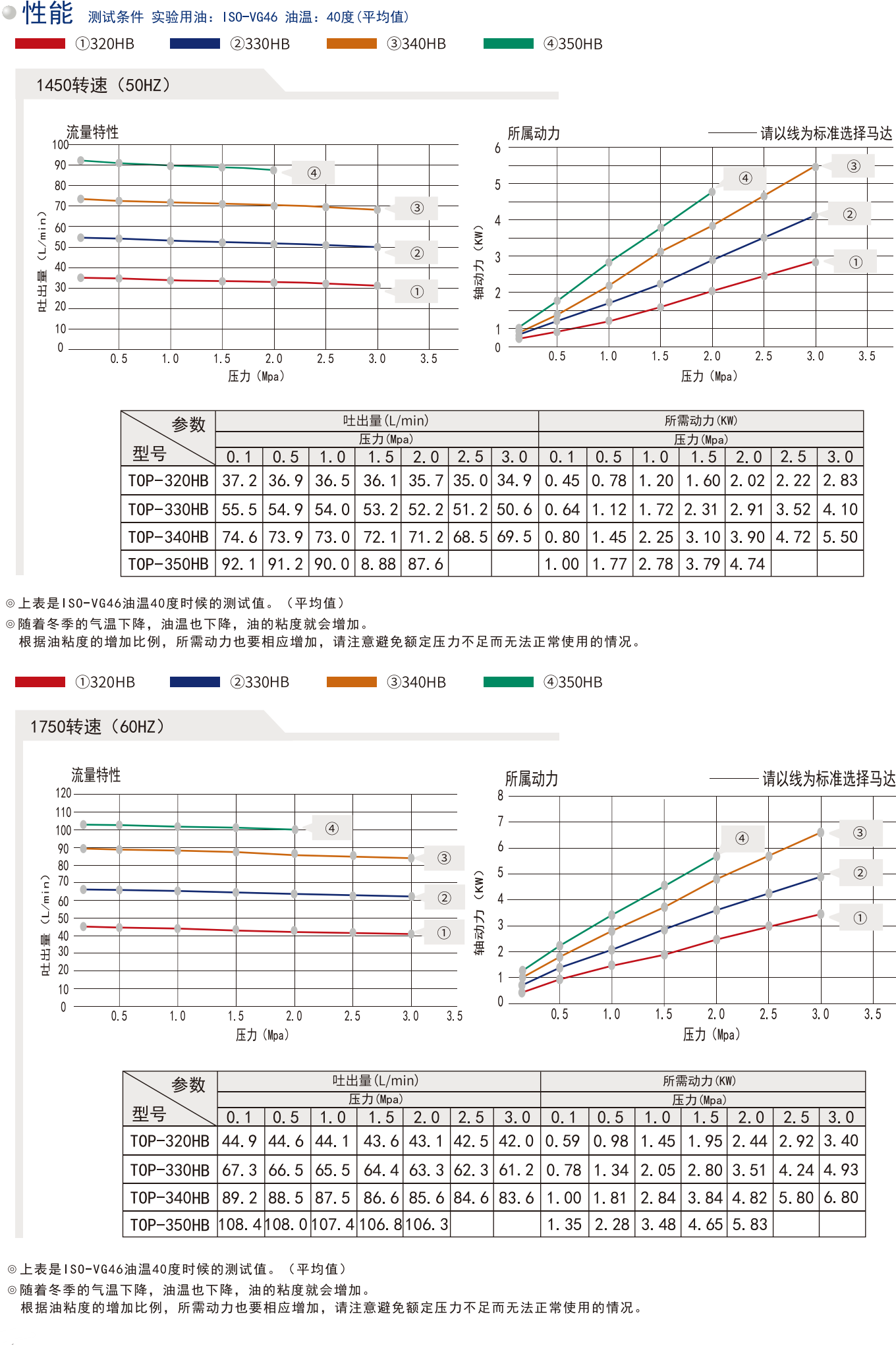

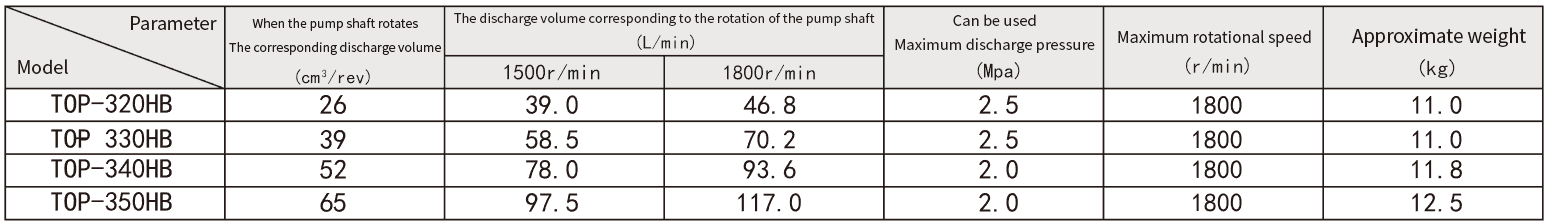

 1. Large flow (39.0-97.5 L/min).

 2. Large discharge pressure.

 3. Internal overflow valve can be installed.

 4. Purpose: transport operating oil, lubricating oil and cooling oil.

 5. Liquid temperature: - 5-80 ℃ (with special parts for high temperature).
