TC high pressure cutting fluid water pump

If the cutting fluid tank is equipped with a T-series pump, the huge cooling system combination can be completely removed. It occupies about 1/50 of the volume of space. Clean tanks, cumbersome piping, and even pumps from the particulate cutting tank to the clean tank are no longer needed. The working space is expanded, and the trouble is greatly reduced. This creates an efficient environment that is easy to operate.

Custom consultation 18923717049
Product Brief Product number Product Size Common anomalies Related Products

█ Maximum working pressure: 2.0MPa Maximum discharge capacity: 28.8L/min

█ No suction filter required

█ No need to clean the water tank

█ No need for a pump for transporting to the cutting fluid tank

█ There is no need for pipes to connect the components

█ Use more than 2% aqueous solution of water-soluble cutting fluid

█ Non-water-soluble cutting fluid, lubricating oil and fuel should not be used with clean water, pure water, aqueous solution without rust prevention effect, viscous liquid, corrosive liquid, solvent, oil agent should not be used.

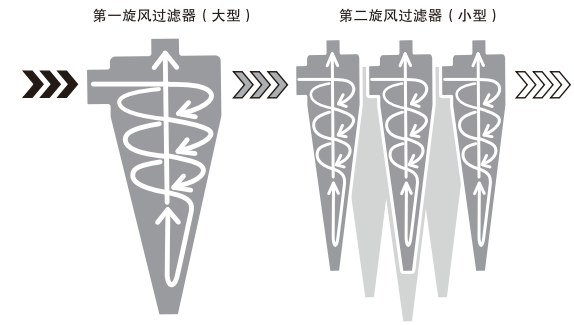

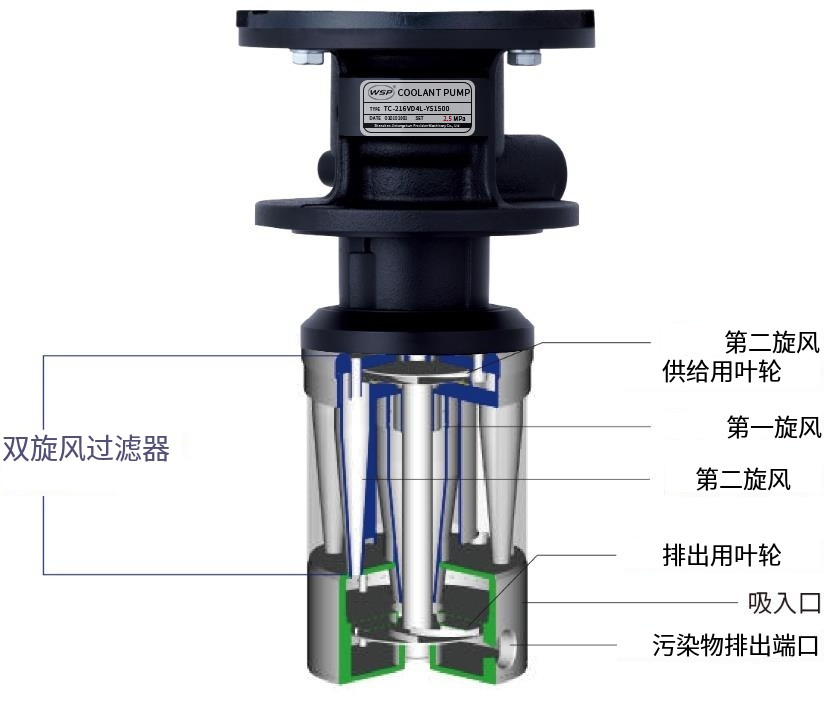

Double cyclone filter

Separate double cyclone filter to remove cut powder. The first cyclone filter removes larger cut powder, and the second cyclone filter removes tiny cut powder. The cleaning cycle of the line filter is extended up to 24 times.

※ Remove 20um or more cutting powder (aqueous solution of 2% or more water-soluble cutting fluid)
