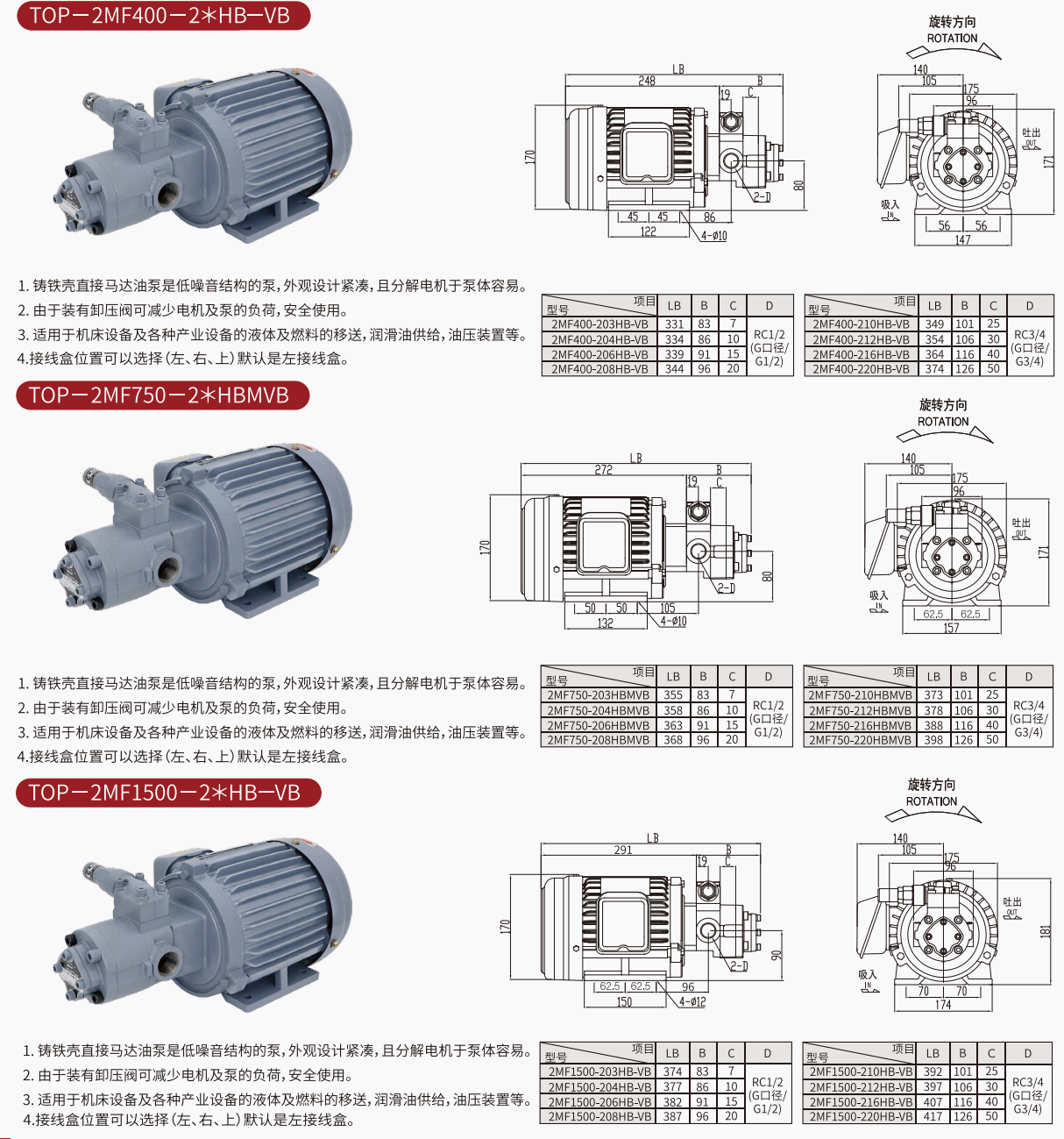

2HB cast iron case oil pump motor

1. The cast iron shell direct motor oil pump is a pump with low noise structure, compact appearance design, and easy to disassemble the motor into the pump body.

2. Since the pressure relief valve can reduce the load of motor and pump, it can be used safely.

3. It is applicable to the transfer of liquid and fuel for machine tool equipment and various industrial equipment, lubricating oil supply, oil pressure device, etc.

Custom consultation 18923717049

characteristic:

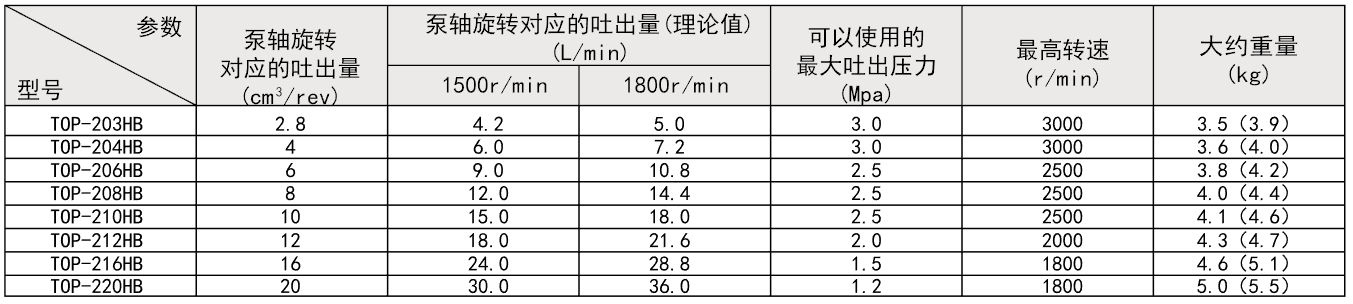

1. Small and medium flow pumps (2.8-20cm³/rev).

2. Internal overflow valve and external overflow valve can be installed.

3. Middle discharge pressure.

4. Purpose: transport operating oil, lubricating oil and cooling oil.

5. Liquid temperature: - 5-80 ℃ (with special parts for high temperature).
