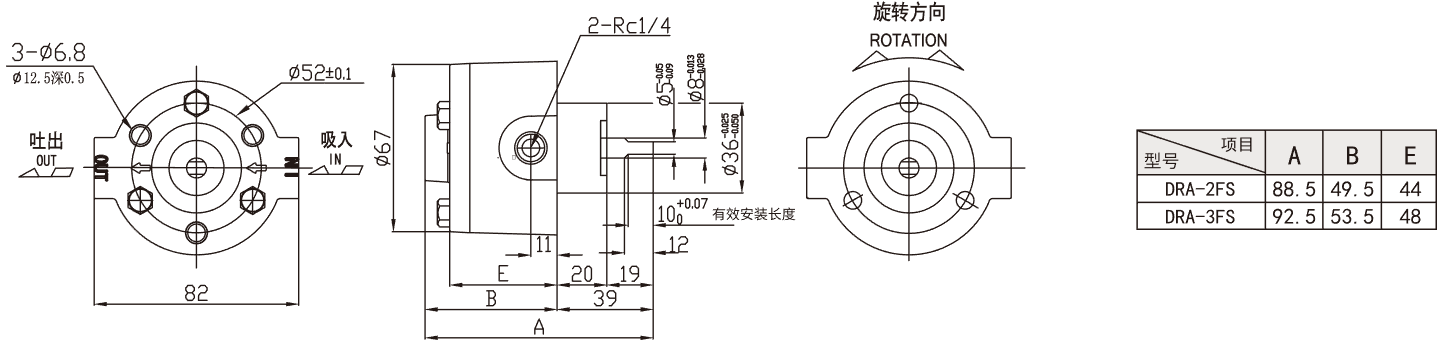

3FS single lubricating oil pump

1. In structure, special reverse sealing coil is used to make the offset position of cycloid rotor rotate 180 degrees with the rotation direction, so that the oil   can flow in a certain direction regardless of the rotation direction.

2. It is applicable to general positive and reverse machinery.

Custom consultation 18923717049

      characteristic:

 1. It can rotate left and right

 2. Whether it is right rotation or left rotation, it can keep the direction of oil suction and discharge unchanged

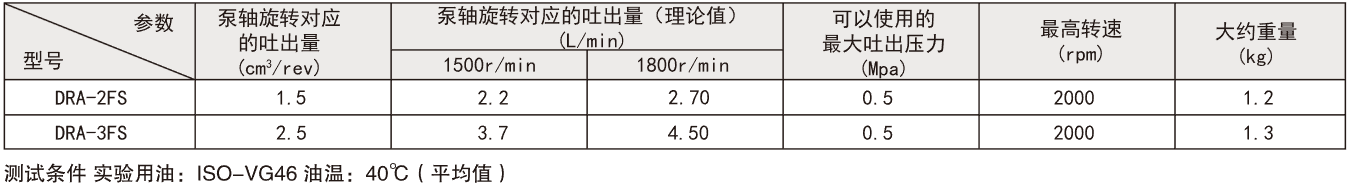

 3. Small flow pump (1.5-2.5cm³/ Rev); low discharge pressure

 4. Application: transport operating oil and lubricating oil; liquid temperature: - 5-80 ℃

 5. It has simple structure, strong self-priming, stable oil transportation, low noise, good high-speed characteristics and is suitable

    for low-pressure continuous lubrication in the lubrication system.
