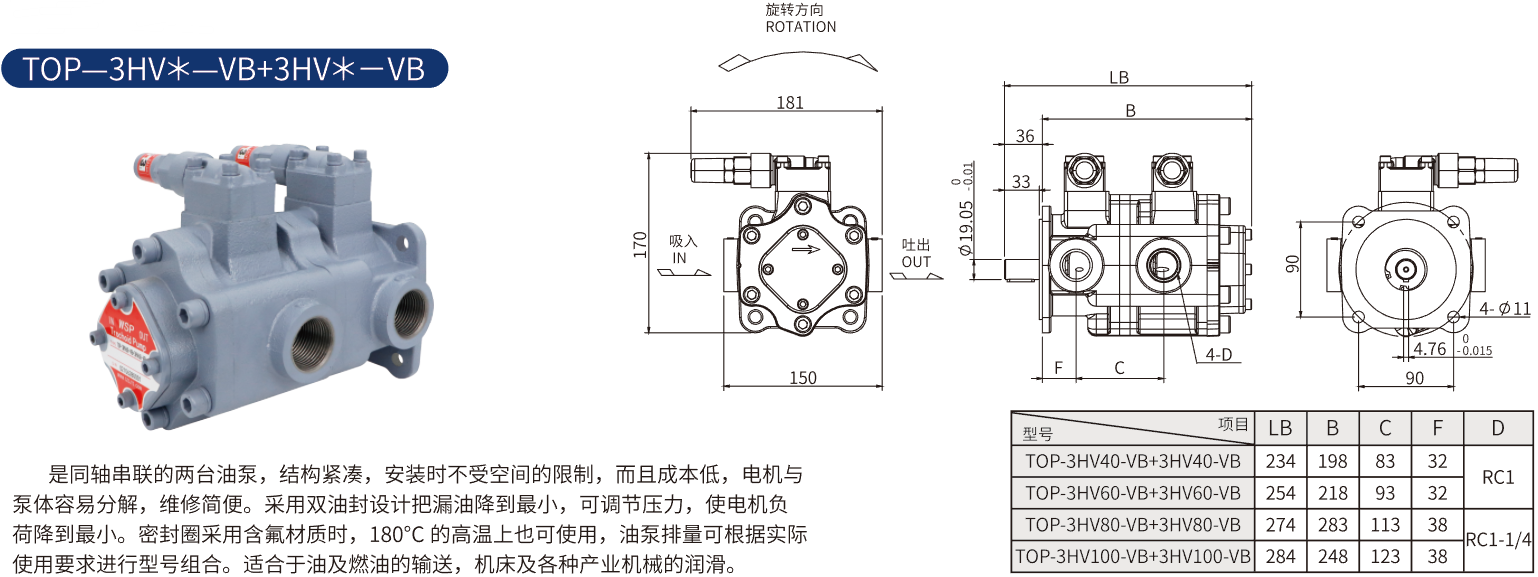

3HV lubricated double oil pump

      The pump is a coaxial series of two oil pumps, compact structure, installation is not limited by space, and low cost, motor and pump body is easy to decompose, easy maintenance. The double seal is used to minimize the oil leakage, and the pressure can be adjusted to minimize the motor load. When the sealing ring is made of fluorine-containing material, it can also be used at high temperature of 180 ' C, and the oil pump displacement can be combined according to the actual use requirements. Suitable for oil and fuel delivery, machine tools and various industrial machinery lubrication.

Custom consultation 18923717049

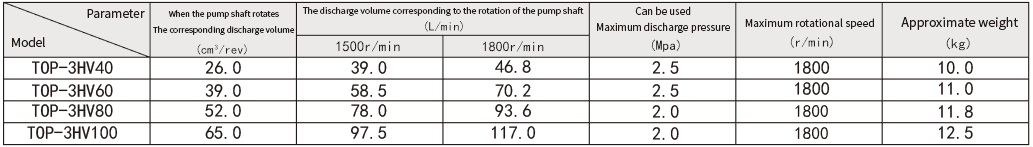

 1. Large flow (39-97.5cm³/ Rev).

 2. Large discharge pressure.

 3. Internal overflow valve can be installed.

 4. Purpose: transport operating oil, lubricating oil and cooling oil.

 5. Liquid temperature: - 5-80 ℃ (with special parts for high temperature).

 6. The pump is of low noise structure, compact design, and easy to disassemble the motor into the pump body.

 7. Since the pressure relief valve can reduce the load of motor and pump, it can be used safely.

 8. It is applicable to the transfer of liquid and fuel for machine tool equipment and various industrial equipment, lubricating oil supply, oil pressure device,   etc.
