3HV-VB lubricating oil pump motor

Cast iron shell motor oil pump is a pump with low noise structure, compact design and easy decomposition of motor in pump body.

2.As equipped with pressure relief valve can reduce the motor and pump load, safe use.

3 Suitable for machine tool equipment and various industrial equipment of liquid and fuel transfer lubricating oil supply, oil pressure device, etc.

4. HV oil pump and ML motor general.


Custom consultation 18923717049

      characteristic:

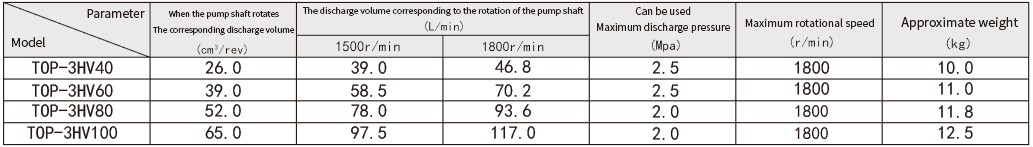

 1. Large flow (39.0-97.5 L/min).

 2. Large discharge pressure.

 3. Internal overflow valve can be installed.

 4. Purpose: transport operating oil, lubricating oil and cooling oil.

 5. Liquid temperature: - 5-80 ℃ (with special parts for high temperature).
