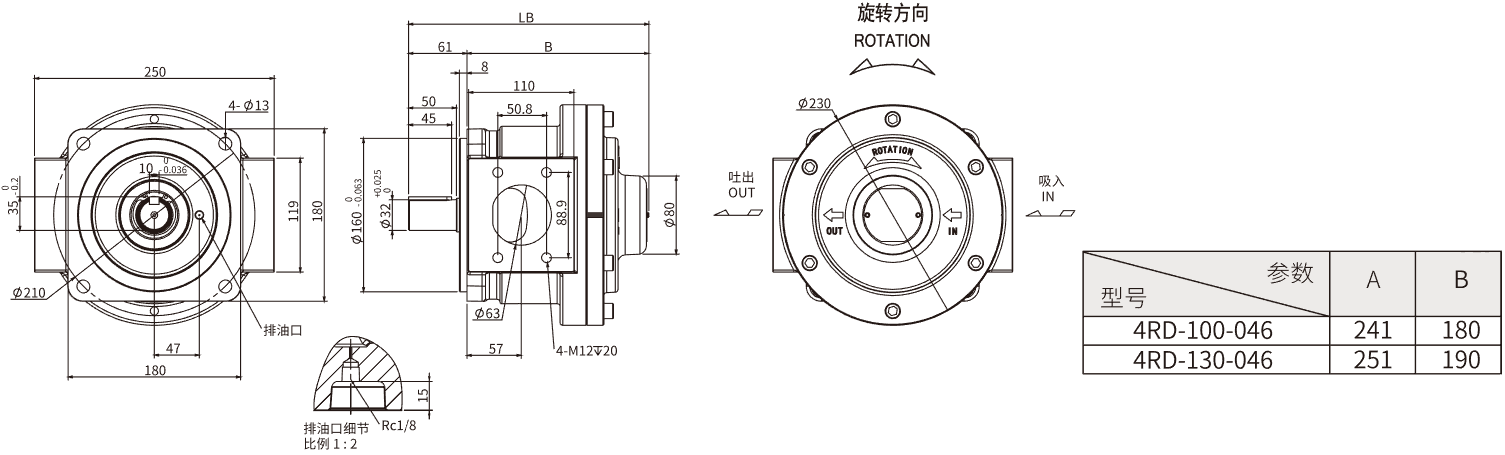

4RD bidirectional lubrication cycloidal pump

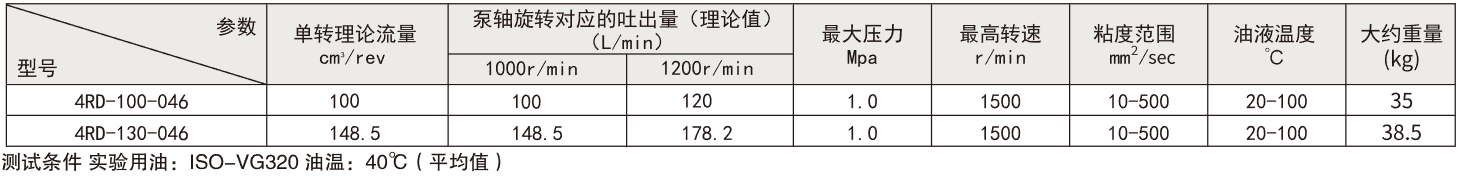

 1. Small flow pump (100-180cm³ / rev); low discharge pressure.

 2. Application: transport operating oil and lubricating oil; liquid temperature: - 5-80 ℃

 3. It has simple structure, strong self-priming, stable oil transportation, low noise, good high-speed characteristics and is suitable for low-pressure   continuous lubrication in the lubrication system.

 4. The characteristic is that the design of the two-way cycloidal pump must ensure that the flow of oil is always in one direction, whether it is in positive or   reverse rotation. The oil inlet and outlet of the two-way cycloid pump remain unchanged, and the rotation direction of the pump shaft can be changed.

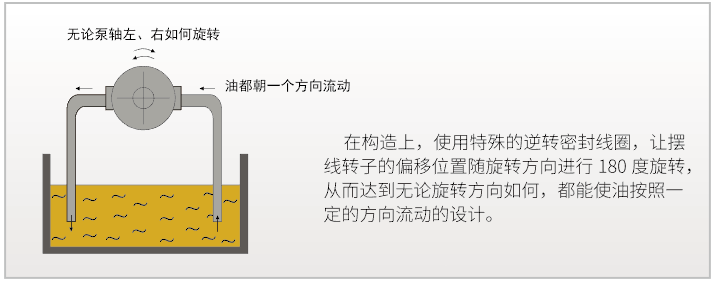

 5. In structure, special reverse sealing coil is used to make the offset position of cycloid rotor rotate 180 degrees with the rotation direction, so that the oil   can flow in a certain direction regardless of the rotation direction.

 6.Dedicated to wind energy gearbox oil.
